nidhogg is the CHOMPI open source firmware adapted to norns and designed around the OMX-27.

TAPE, TEMPO and WAVE run the CHOMPI firmware code on Linux. Switch between them in the norns parameter editor. Each keeps its state and resumes when you return.

I've tested it on my shieldXL with a Pi 4 and 2 GB of memory, and on a Pi 3 like an official norns. OMX-27, Exquis, Launchpad Pro and QuNexus are supported. Ask about other controllers in #nidhogg on my discord, or open an issue here.

Thanks to the team at CHOMPI for open sourcing it, I hope this port does it justice.

Enjoy! Dan

---

• What you need
• Installing
• Updating
• The keys and knobs
• The norns screen
• Knobs and pages
• Playing samples
• Shift
• Recording a sample
• The looper
• The OMX screen
• Other controllers
• Importing samples
• The library
• Settings
• TEMPO
• WAVE
• Credits

What you need

• A norns or norns shield.
• An OMX-27 plugged into the norns by USB, any of the three boards, or one of the other controllers.
• About 200 MB free and Wi-Fi for the first install.

The OMX-27 needs Quixotic7's firmware 1.15.4 or newer. With older firmware, nidhogg offers an update: K3 updates and K2 skips. Updating clears the OMX-27's saved patterns.

On a Teensy unit, press the Teensy's button if asked. To update or repair it later, choose update OMX-27 under PARAMETERS > EDIT.

Installing

1. In maiden, type ;install https://github.com/roge-rm/nidhogg into the REPL.
2. Load nidhogg from SELECT.
3. The first time, it downloads CHOMPI's factory samples, installs its SuperCollider plugins and restarts SuperCollider. This takes a few minutes, then nidhogg loads by itself.

The samples are in dust/audio/nidhogg, one folder per firmware, laid out like a CHOMPI SD card. To add your own, see Importing samples.

If SuperCollider won't start after you've been logged in over ssh, restart the norns.

Updating

1. In maiden, open the project list, find nidhogg and press update.
2. Load nidhogg again. If its SuperCollider plugins have changed it installs them and restarts SuperCollider, then loads by itself.

Your samples, library and settings stay as they are.

The keys and knobs

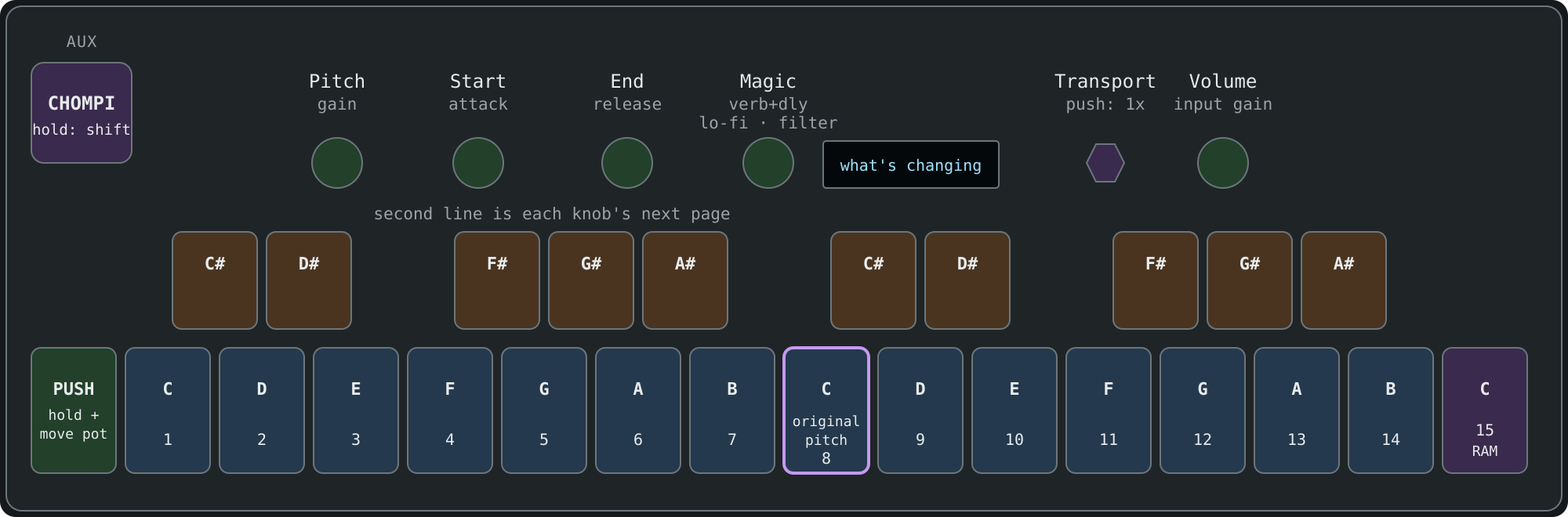

AUX is the CHOMPI key. The bottom row from the second key up and the ten top keys are CHOMPI's keyboard. The top keys play the sharps, and with AUX held they're the shift menu.

On the norns, E1 is CHOMPI's switch. Left is Play, where AUX is shift. Right is Record, where AUX records. K2 is PLAY, K3 is LOOP, E2 is Transport and E3 is Volume.

The keys light up the same way CHOMPI's do.

The norns screen

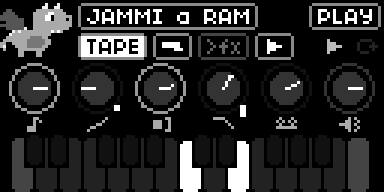

• The little dragon chomps when you play a note, puts headphones on when you record, bobs along when something's playing and gets sleepy before the screensaver.
• The top row is what's loaded and where the switch is. Under it are the firmware, the input, the effects order and the looper.
• The six knobs are Pitch, Start, End, Magic, Transport and Volume. Their rings light up like CHOMPI's knob lights, and a mark on the side means a knob is on page 2 or 3.
• The keyboard lights up like the OMX keys.

Knobs and pages

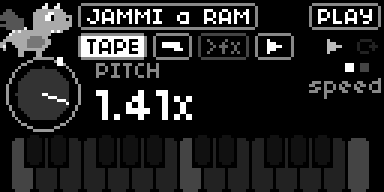

Each knob does two or three things, called pages. Hold PUSH (the leftmost bottom key, or K1) and nudge a pot to go to its next page.

A pot won't do anything until you sweep it past where the knob is set, then it takes over. The norns shows the knob up close while you turn it, with a dot where the pot is.

Pitch is a little sticky in the middle, so it's easy to get back to.

Knob	Page 1	Page 2	Page 3
Pitch	speed. Right of the middle plays forward, left plays backwards	gain
Start	where it starts playing	attack
End	where it stops	release
Magic	reverb and delay	lo-fi	filter
Volume	volume	input gain
Transport	looper speed. Push for normal speed

Playing samples

In JAMMI you play one sample across the keyboard. In CUBBI every white key has its own sample.

To pick a sample, hold AUX and press a white key. Keys 1-14 are the samples in the bank and key 15 is your own recording.

Shift

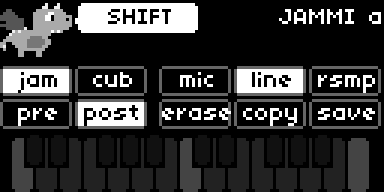

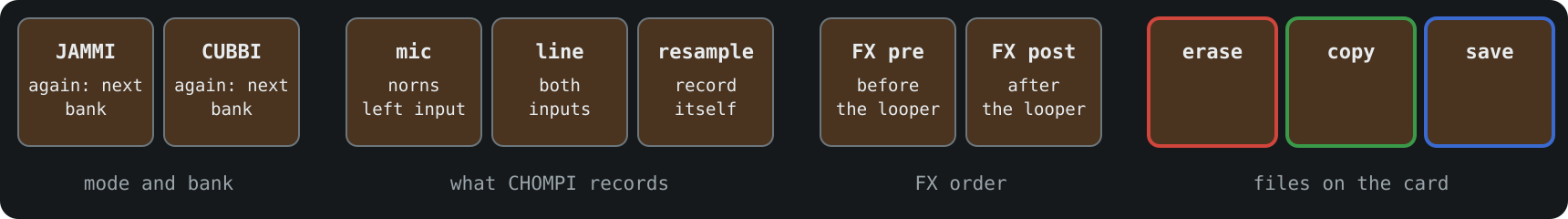

Hold AUX and the top keys and pots do something else.

• Pitch tunes in fifths and fourths, and on page 2 it's pan.
• Start and End move the whole sample window.
• Magic sets the delay time.
• Volume sets the compressor.
• K2 and K3 set the overdub level.

The lit chips on the norns are what's chosen now.

Recording a sample

1. Turn E1 right.
2. Hold AUX while you make the sound.
3. Turn E1 left and play it on the keys.

To keep it, hold AUX, press save, press a white key 1-14, then press AUX again.

The looper

• LOOP starts recording. Press it again to close the loop and keep overdubbing, and again to stop.
• PLAY stops and starts the tape. Hold it to rewind.
• Hold PLAY and LOOP to clear it.
• Transport changes the tape speed, and scrubs when it's stopped.

The OMX screen

The OMX screen shows five bars, one per pot. A box marks page 2 or 3, and a line marks a pot that hasn't taken over yet.

Turning Start or End opens the sample window, and recording shows levels. Tap PUSH to choose the usual view.

Knobs	Levels, in and out
The sample window, between Start and End	The beat and tempo, in TEMPO and WAVE

Other controllers

nidhogg can also be played from these, plugged into the norns by USB. Each has its own page:

• Exquis by Intuitive Instruments
• Launchpad Pro [MK3] by Novation
• QuNexus by Keith McMillen

Importing samples

nidhogg keeps a sample library on the norns, in dust/audio/nidhogg/library. CHOMPI's banks are what's loaded from it right now, and you can swap any pack in or out.

Plug a USB stick into the norns and the import screen comes up. You can also put files in dust/audio/nidhogg/import through maiden and open it from PARAMETERS > EDIT > import samples.

1. E2 moves through the packs. Each folder of samples is a pack, and so is each folder inside a zip.
2. K3 ticks a pack. K1 opens it, so you can tick single samples.
3. E3 sets where a ticked pack goes: into a bank, added to a bank's empty slots (+), or just into the library.
4. The last row imports everything you ticked.

When it's done the stick is unmounted, so you can pull it straight out, and SuperCollider restarts to load the new samples, which takes about 20 seconds.

• It reads wav, aiff, flac and ogg.
• Packs made for CHOMPI keep their slots. Other samples go in name order, and a pack with more than 14 spills into the next bank.
• Packs you've imported before show as in library.
• TEMPO cuts samples at 10 seconds.
• On WAVE, packs are wavetables made of 2048-sample frames, like Serum's, or single cycles.

The library

Open it from PARAMETERS > EDIT > sample library. Each row is a bank.

• E3 picks a pack from the library for the bank.
• K1 opens the bank, and E3 then picks a single sample for each slot.
• The last row loads your changes.

Before a bank is replaced, whatever was in it is kept in the library, factory samples and your own recordings included, so nothing is lost.

Settings

These are in PARAMETERS > EDIT:

• firmware: TAPE, TEMPO or WAVE. Each one carries on where you left it.
• screensaver after: how long before the big dragon comes out.
• midi out to and midi in from. Notes come in on any channel, so MPE controllers play too.
• pressure to: aftertouch from the midi in device pushes a knob up from where it's set, and lets it back when you ease off. CHOMPI has no pitch bend, so bend is ignored.
• tape, tempo and wave options: CHOMPI's own settings. These take effect when you restart the norns.

TEMPO

TEMPO has two engines that play together. Chromatic plays one sample across the keys and slice cuts one into 16 pieces. Each has its own arpeggiator.

E1	left: AUX is shift. Right: AUX records
K2	starts and stops the arpeggiator
K3	latch
Encoder	tempo. Push to tap it
Magic	the granular delay. A quick push freezes it
AUX + top keys	chromatic, slice, mic, line, resample, state A, state B, erase, copy, save
AUX + K2, K3	change the arpeggio and rest patterns

WAVE

WAVE is a wavetable synth with a step sequencer.

E1	left: AUX is shift. Right: AUX mutes the sequencer
K2	starts and stops the sequencer
K3	records steps as you play. Hold it to delete the last one
Encoder	tempo. Push to tap it
Pitch	tuning, and on page 2 the wavetable position. Tuning is a little sticky in the middle
AUX + top keys	octave down and up, gate length, the two LFOs, erase, copy, save
AUX + white keys	load presets 1-14

Credits

CHOMPI is by CHOMPI Club, now part of Chase Bliss, with hardware and the original firmware by Electrosmith. The firmware is MIT licensed (github.com/CHOMPI-Club/CHOMPI) and the copy in third_party/chompi keeps its licences. The CHOMPI name and character are trademarks of CHOMPI Club, and nidhogg isn't an official CHOMPI release.

nidhogg is MIT licensed too, see LICENSE. It comes with PJRC's teensy_loader_cli for updating Teensy OMX-27s, which is GPL3.

The OMX-27 is by Denki Oto, with firmware by okyeron and Quixotic7.

How it works is in docs/design.md, and building the plugins in docs/building.md.
